Home > Products > Aluminum Pipes/Tubing > 45 Degree Aluminum Pipe

45 Degree Aluminum Pipe

ISH 45 Degree Bend 6061 Aluminum pipe/Aluminum tuning is ideal for connect hoses for intercoolers, radiatrors, air induction, superchargers, or charger air cooler  etc.

Easy to replace, cut and adapt to your piping needs
Corrosion resistant and high temperature resistance, upto 250°C

Technical Specification
-Material: 6061-T6 Aluminum
-Mirrow polished finishing
-Wall Thickness: 1.8mm (OD <=76mm),2mm(OD>76mm)
-Bead rolled end type(Option:straight end)
-Totally Length Option:300mm,450mm,500mm,600mm.
-Available in 1ft &3t straigt aluminum pipe ,45°degree ,90°degree ,135°degree ,180° degree  aluminum pipe,
contact us directly for 15°,60°,75°  elbow and other unregular shapes aluminum pipes.

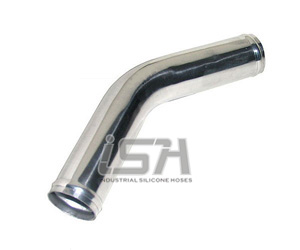

ISH 6061-T6 45 Degree Bend Aluminum Pipe

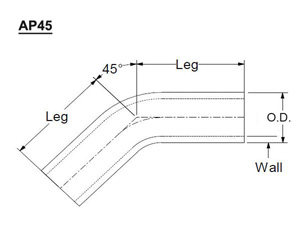

45 degree bend aluminum pipe45 degree bend aluminum pipe-dia
45 Degree Bend Aluminum Pipe-bead rolled end

45° Elbow Aluminum Pipe
Part No OD(mm) OD(inch) Leg Length(inch) Leg Length(mm) Wall Thick(mm) Material
AP45-38 38 1.5" 6" 150 1.8 6061 T6
AP45-51 51 2.0" 6" 150 1.8 6061 T6
AP45-63 63 2.5" 6" 150 1.8 6061 T6
AP45-76 76 3.0" 6" 150 1.8 6061 T6
AP45-89 89 3.5" 6" 150 2.0 6061 T6
AP45-102 102 4.0" 6" 150 2.0 6061 T6
